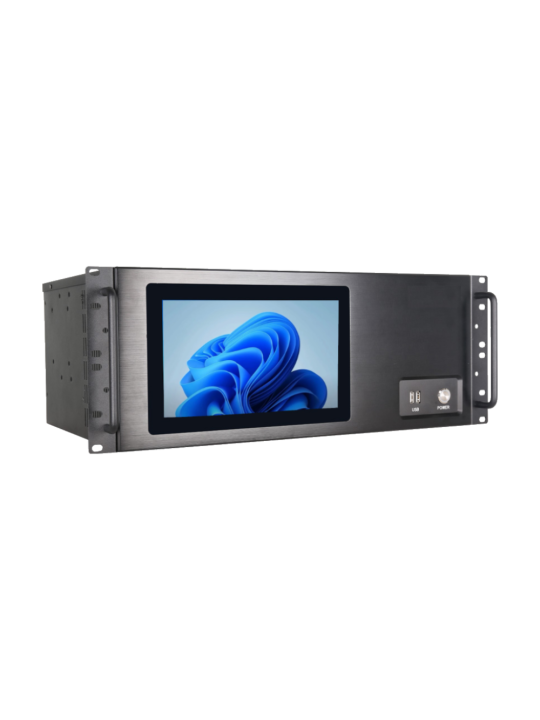

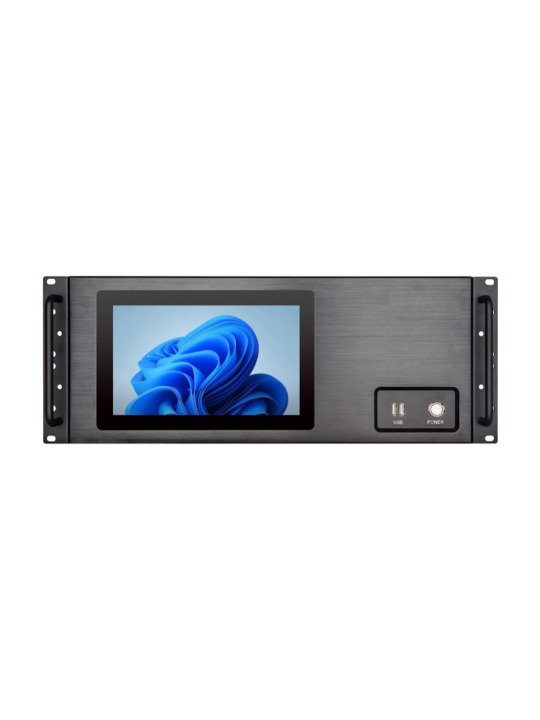

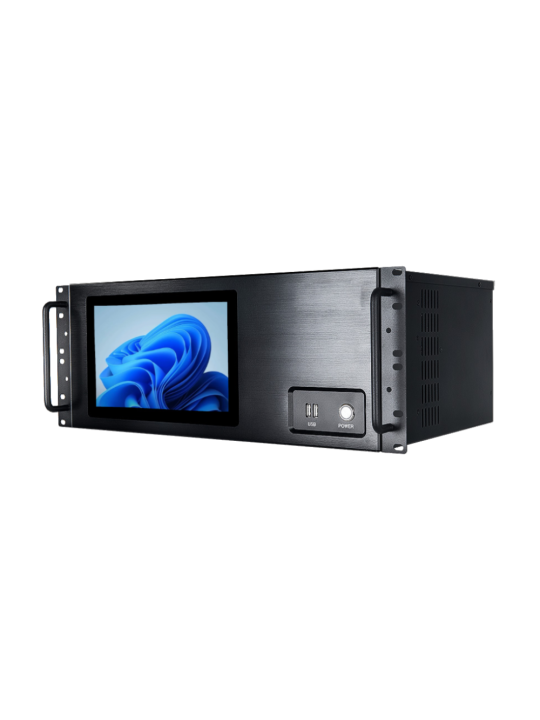

Industrial Panel PC Rack 9", 16:9, IP65, 12 ~ 36 V
ITP-RK4XXXD
- Pure flat panel IP65 dust-proof and waterproof.
- Self-developed X86 architecture industrial motherboard
- Dual gigabit adaptive Ethernet ports for faster transmission.
- Supporting 12V-36V wide voltage power supply;
- Industrial protection, applicable to various harsh environments.
- Avaiable CPUs: Intel Celeron, Pentium, I3, I5, I7.

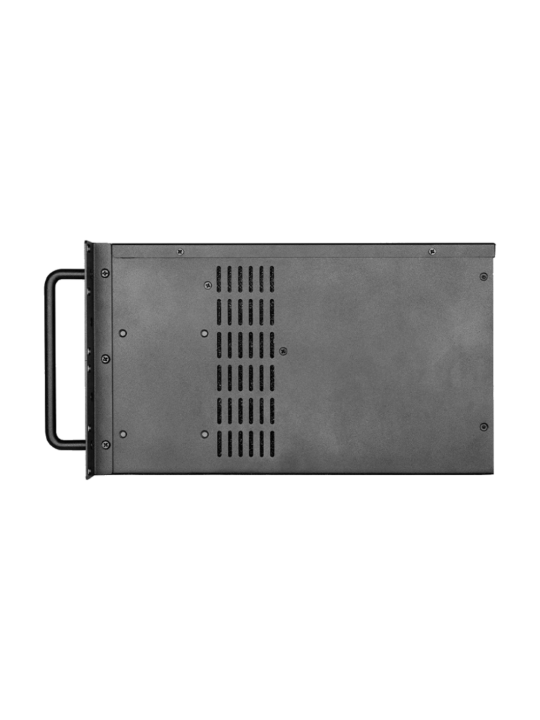

The front panel is designed with aluminum alloy flat panel, the body is designed with metal sheet metal structure, the honeycomb cooling structure with fan efficient cooling design program, the whole machine for high performance, is designed specifically for the server room rack-mounted environment and designed for industrial computers, can ensure long and stable work in harsh environments.
Configured with 9-inch full-view LCD screen and ten-point capacitive touch screen, configuration compatible with Intel Core/Pentium/Celeron i3/i5/i7 independent processors, rich interfaces and expansion slots, support a variety of expansion card access, through the PCI/PCIE interface, external video capture card, visual motion control card, light source brightness control card, etc., widely used in industrial control, military, communications, power, network and other automation fields, Communication, electric power, network and other automation fields.
ITP-RK4XXXD
Specific References
Display
| LCD Size | 9" (22.86 cm) LCD |
| Resolution | 1024 x 600 |
| Colour | 16.7M |
| Brightness | 300 (cd/m2) |
| Contrast ratio | 1000:1 |

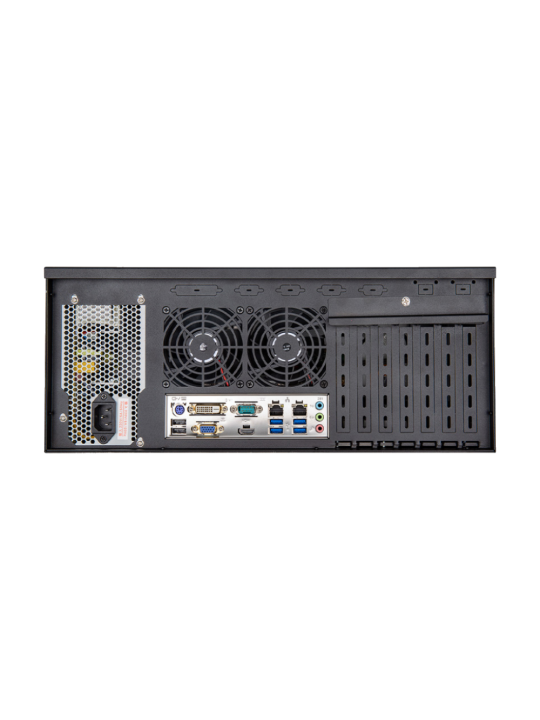

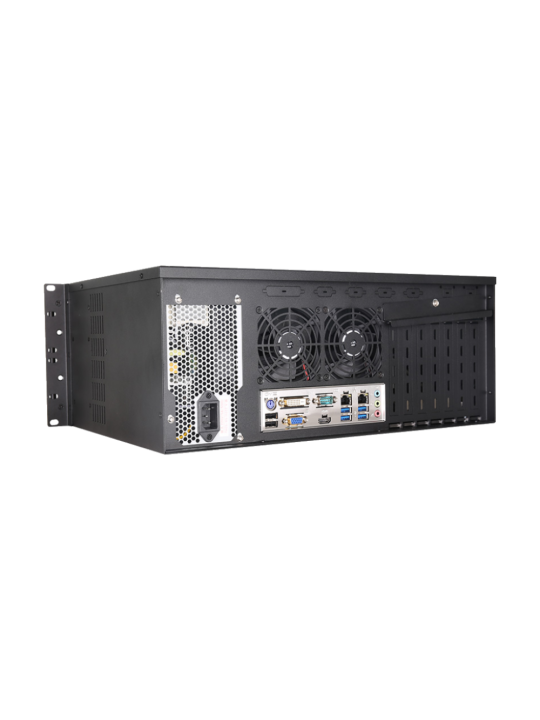

Interface
| USB | 5x USB 2.0, 4x USB 3.0 |
| Video | 1x HDMI, 1x VGA, 1x DVI |
| Touchscreen (Optional) |
Capacitive multi-touch
|
| Lan |
2x Lan, Dual 1000M adaptive Ethernet
|
| Audio |
1x Audio out, 1x Audio in, 1x Mic
|
| Sim |
1x Sim, various formats (depending on 3G/4G module)
|
| VGA |
1x VGA
|
| COM |
2x RS232
|
| Power interface (1) |
1x 220V power input
|
Hardware Configuration
| CPU (Customizable) | Intel Celeron, Pentium, I3, I5, I7 |
| Ram | up to 32Gb DDR4 |
| Storage | 4x Sata3.0, 1x mSata |
| WiFi | Dual Band 2.4G & 5G |
| Operating System | Win 10, Ubuntu/Centos/RedHat/Debian/Linux |
| Other Support | Support RTC real-time clock and timing switch |
Mechanical / Environmental
| Authentication |
CCC/CE/FCC/EMC/CB/ROHS
|
| Operating temperature | 0° ~ 65°C |
| Humidity | Humidity: 95% Non-Condensing |
| Dimensions (WxHxD) | 430 x 299 x 176 mm |
| IP Rating | Front panel reaches IP65 protection level |
| Mounting | Rack Mount |
.png)
.png)
.png)
