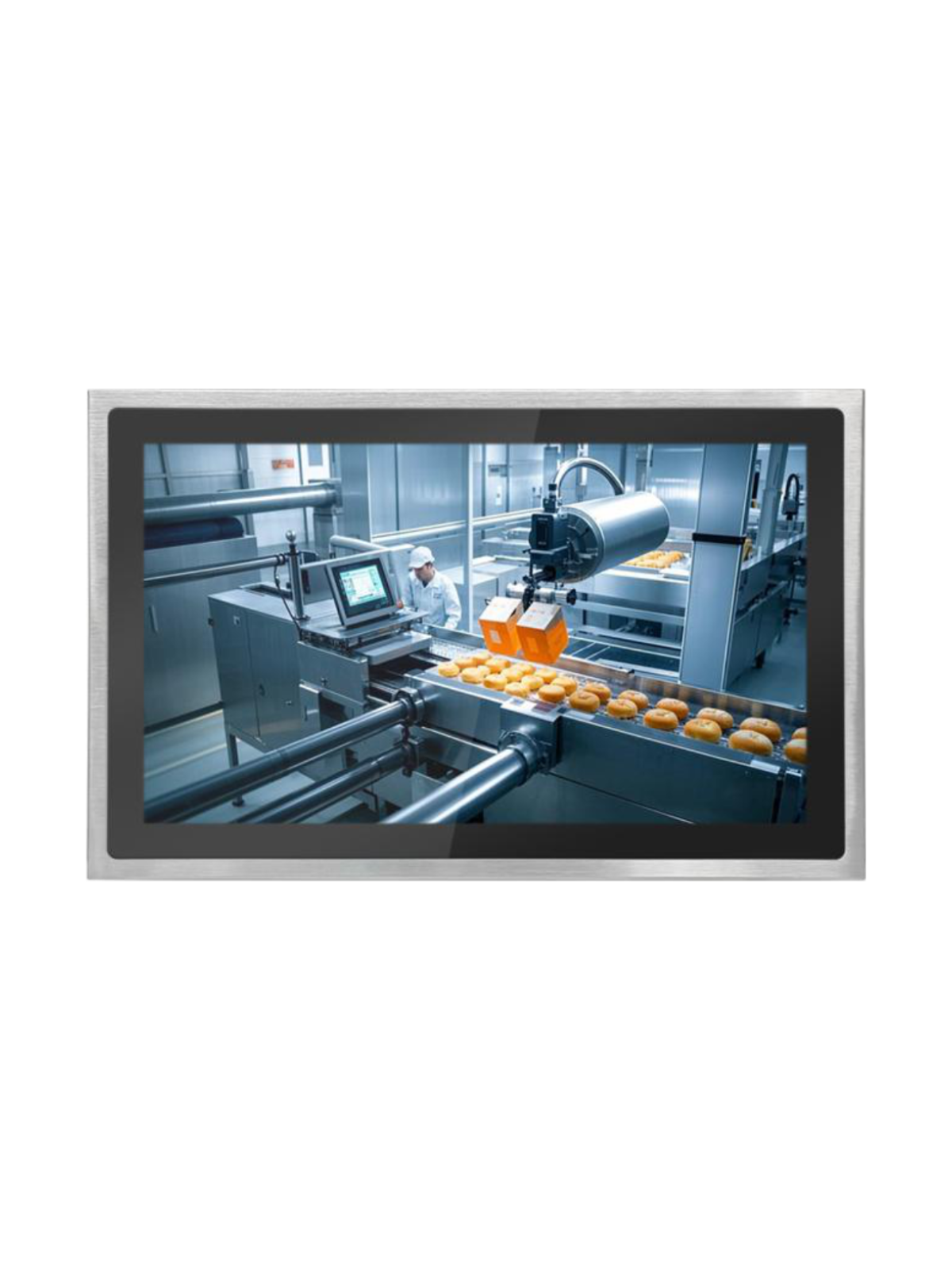

Industrial Stainless Steel Panel PC 21.5", 16:9, IP67
ITP-Q215
- Durable & Rugged: Stainless steel material, excellent corrosion resistance and high hardness, Full IP67 waterproof

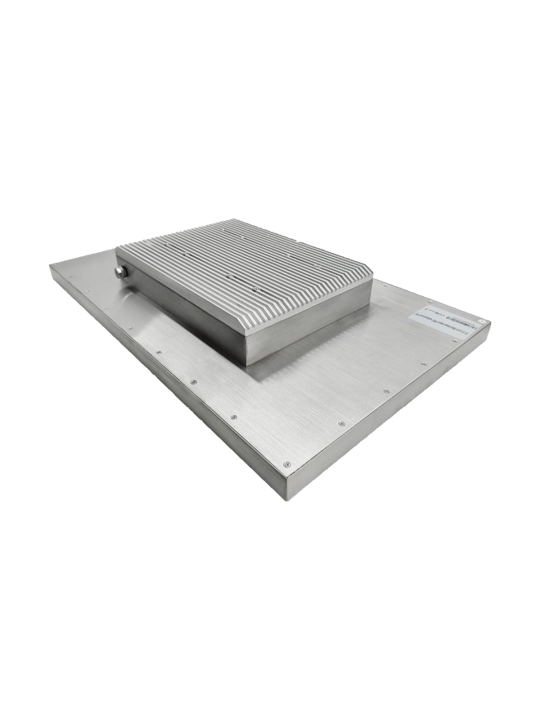

- Enhanced Cooling: Aluminum alloy heat sink on the rear for efficient heat dissipation.
- High Efficiency & Low Power Consumption: Equipped with Intel® J6412, N100, and 8/11th Gen i3/i5/i7 processors for stable long-term operation and energy savings.
- Precise Touch Control: 10-point capacitive touchscreen for smooth interaction and multi-touch gestures.
- Industrial-Grade HD Screen: Wide viewing angles, high resolution, true color.
- Optical Bonding: Eliminates condensation between the LCD and touch panel, enhances durability, reduces refraction and reflection, and enhances display clarity for better visibility.
Our Panel PC, constructed from stainless steel, delivers exceptional corrosion resistance and high durability, ensuring full IP67 protection against water and dust even in the harshest industrial environments.
The rear aluminum alloy heat sink enables efficient heat dissipation, providing stable, long-term operation.
Equipped with Intel® J6412, N100, and 8th/11th Gen i3/i5/i7 processors, it combines high performance with energy efficiency.
The 10-point capacitive touchscreen guarantees smooth, precise interaction and supports multi-touch gestures. The industrial-grade HD display offers wide viewing angles, high resolution, and true-to-life color reproduction, while optical bonding eliminates condensation between the display and touch panel, enhancing durability and visibility in any condition.
Multi-screen support via HDMI and LCD allows for both synchronous and asynchronous display modes, delivering maximum operational flexibility.
Product Interface & Size:
ITP-Q215
Specific References
Display
| LCD Size | 21.5" (54.68 cm) TFT LCD |
| Active Area (mm) | 476.6 (H) x 268.1 (V) |
| Resolution | 1920 x 1080 |
| Viewing Angle | 89/89/89/89 (L/R/U/D) |
| Colour | 16.2M |
| Brightness | 350 (cd/m2) |
| Contrast Ratio | 1000:1 |
Touch Parameters
| Touch type | 10-point touch projection Capacitive |
| Transmittance | ≥90% |
| Input mode | Handwriting or Capacitance pen |
| Controller | USB |
Interface
| USB | 2x IP67 USB (optional more) |
| Video | 1x IP67 HDMI |
| Lan | 1x IP67 Lan (+1 Optional) |
| Audio | 1x Audio out, 3.5 |
| Sim | 1x Sim slot (Optional) |
| COM | 2x RS232 (Up to 6 COM support) |
| WiFi antenna | 2x WiFi antenna |
| Power interface | 1x DC 2.5, Supporting 12V power input |
Hardware Configuration
| CPU (Customizable) | Intel Celeron J6412, N100, I3, I5, I7 (8th or 11th Gen) |
| Ram | up to 64Gb DDR4 |
| Storage | up to 1Tb SSD, up to 2Tb HDD (optional) |
| WiFi | Dual Band 2.4G & 5G |
| Operating System | Win 10/11, Linux, Android, Mac, etc |
Mechanical / Environmental
| Authentication | CE/FCC/ROHS |
| Operating temperature | 0° ~ 60°C |
| Humidity | 100% Non-Condensing |
| Dimensions (WxHxD) |
562 x 357 x 71.6 mm |
| IP Rating | IP67 |
| Mounting | 100x100, 75x75 VESA Mount |
| Vibration protection | GB/T 2423.10-2019 |
| Impact protection | GB2423.5 |
.png)
.png)
.png)
