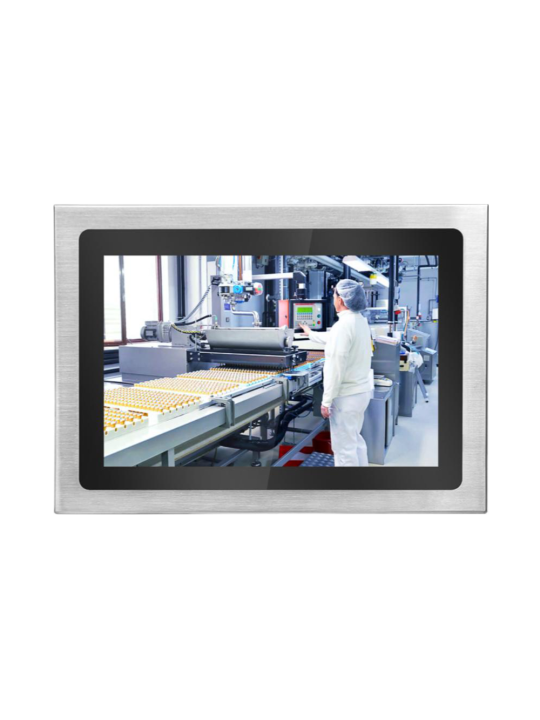

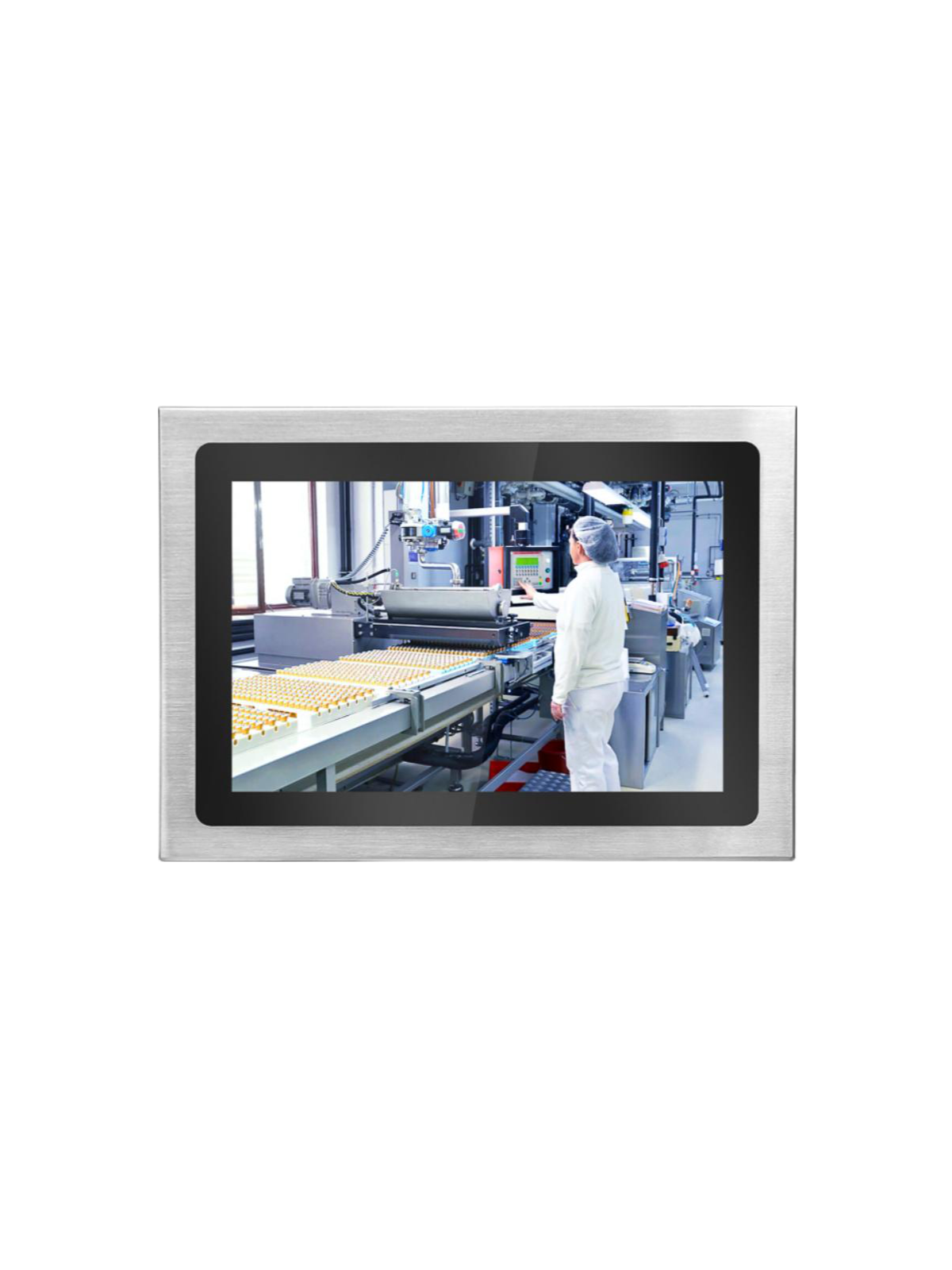

Industrial stainless steel Monitor 17.3", 16:9, total IP67, Capacitive Touchscreen
ITM-Q173
- Stainless Steel Industrial Monitor
- Full IP67
- 10-touch capacitive touchscreen
- Corrosion-proof stainless steel construction
- Ideal for food, pharmaceutical, medical sectors
- Perfect for sectors where maximum cleanliness is required
Built for harsh and hygiene-critical environments, this 304 stainless steel monitor is fully IP67 dust- and waterproof, offering strong corrosion and chemical resistance and supporting washdown cleaning.
The industrial-grade LCD provides full viewing angles; the touch version features a 10-point PCAP panel with 2 mm chemically strengthened tempered glass (7H surface hardness).
The EETI waterproof solution keeps touch input reliable even with water drops on the screen. Optical bonding enhances shock and vibration resistance, prevents internal fogging, reduces reflections, and improves image clarity.
Industrial-grade components ensure 24/7 operation with a wide operating temperature of -20 °C to 70 °C. Wide-range DC 9–36 V input.
ITM-Q173
Specific References
Display
| LCD Size | 17.3" |
| Resolution | 1920 x 1080 |
| Colour | 16.2M |
| Brightness | 400 (cd/m2), Optical 1000 (cd/m2) |
| Contrast ratio | 600:1 |

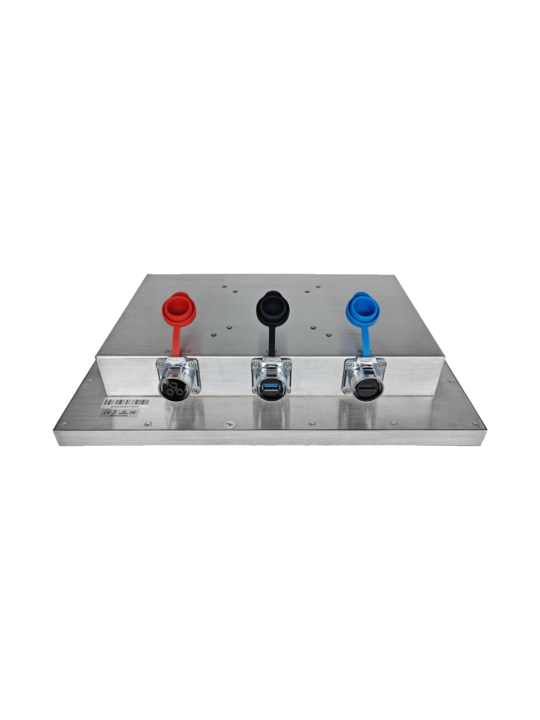

Interface Parameters
| USB | 1x USB for touch IP67 |
| Video | 1x HDMI IP67 |
| Touchscreen | 1x USB for touch IP67 |
| OSD control | Contrast, Color, Position, Auto-adjustment, Factory Settings |
| Power | 1 x 9-36V DC Input (w/external AC/DC adapter) |
Mechanical / Environmental
| Power | 1 x 3m power adapter with power cord IP67 |
| Operating temperature | -20° ~ 70°C |
| Humidity | up to 100%, non-condensing |
| Dimensions (WxH) | 381.8 x 214.8 mm |
| IP Rating | Full IP67 |
.png)
.png)
.png)
Request information or customize this product
Describe your needs regarding this product and our technicians will contact you.
- Stainless Steel Industrial Monitor
- Full IP67
- 10-touch capacitive touchscreen
- Corrosion-proof stainless steel construction
- Ideal for food, pharmaceutical, medical sectors
- Perfect for sectors where maximum cleanliness is required
