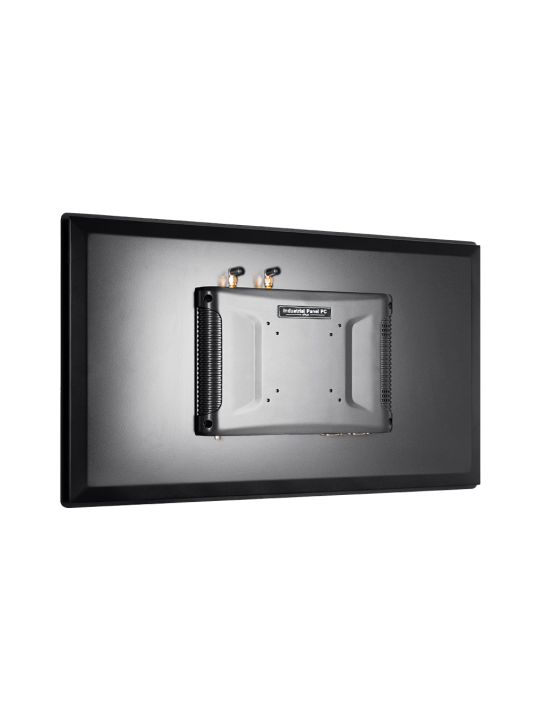

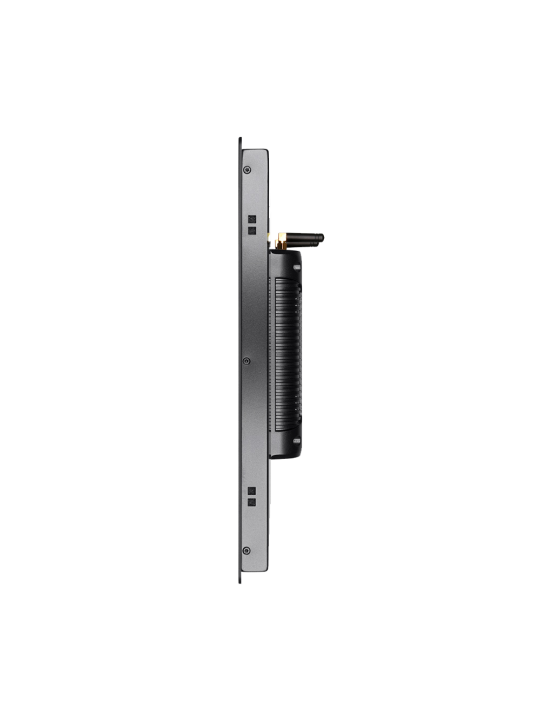

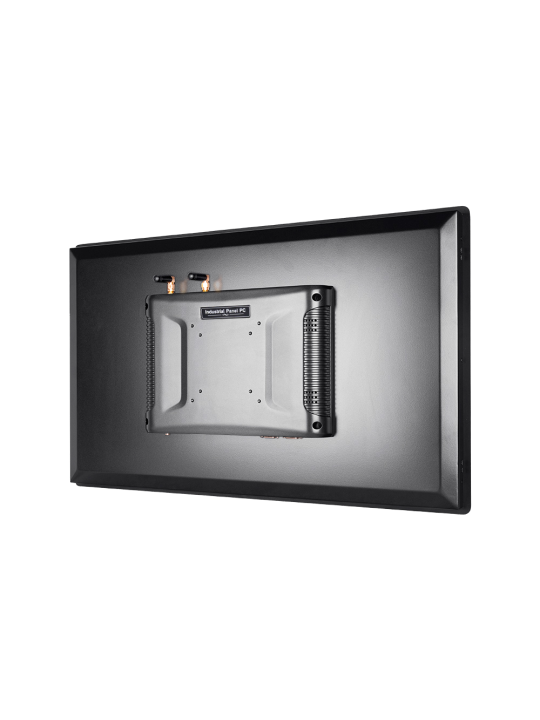

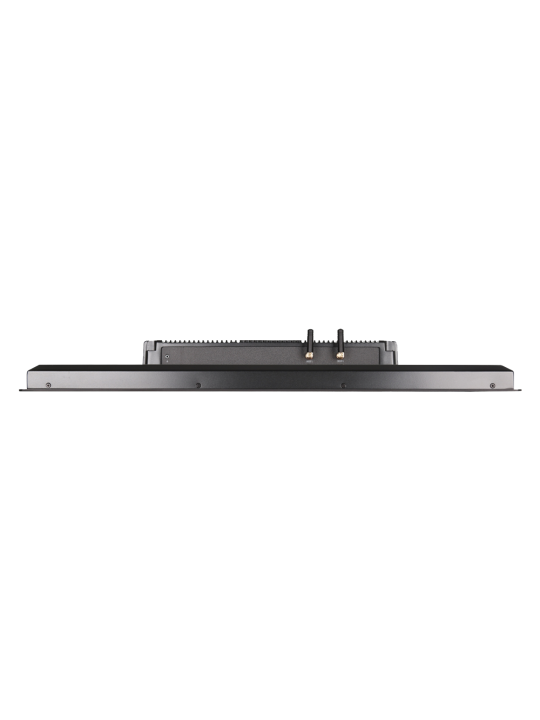

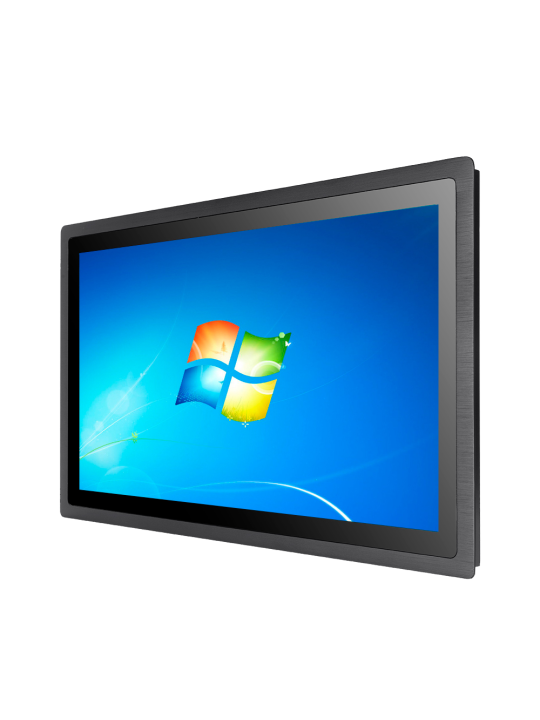

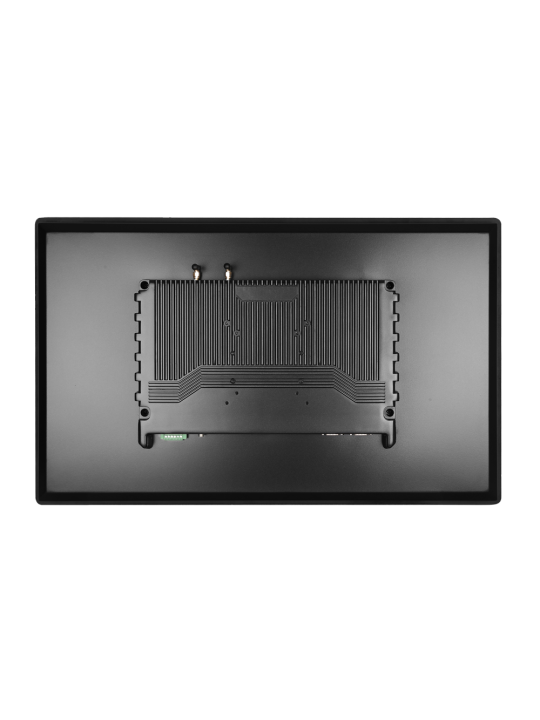

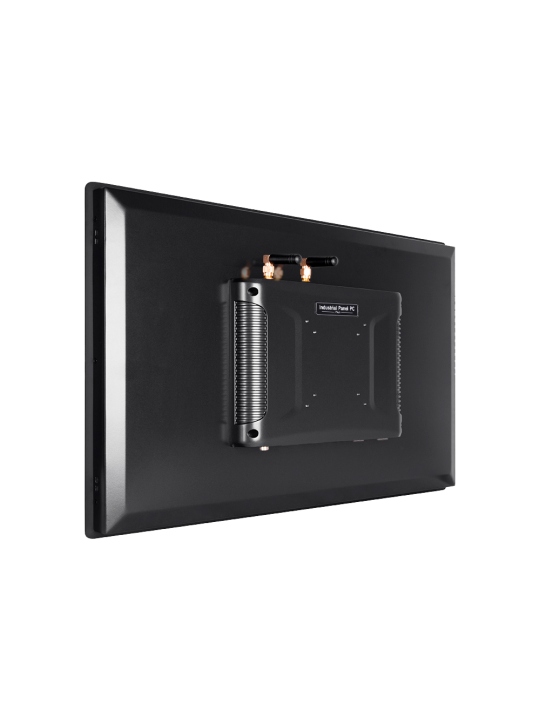

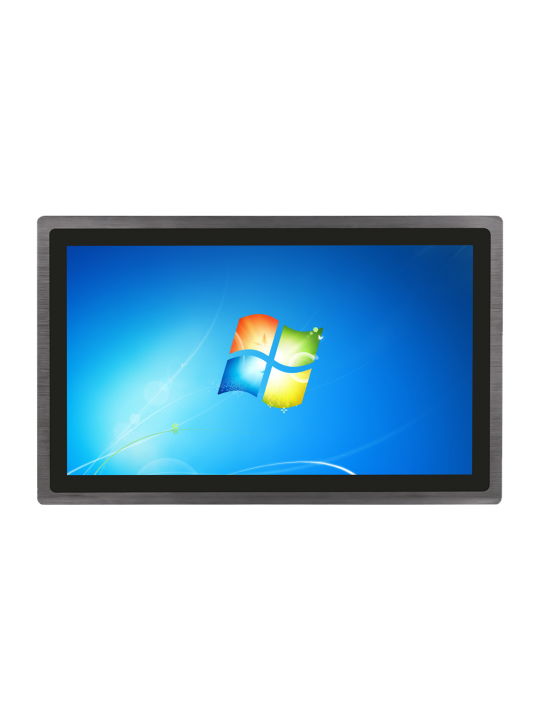

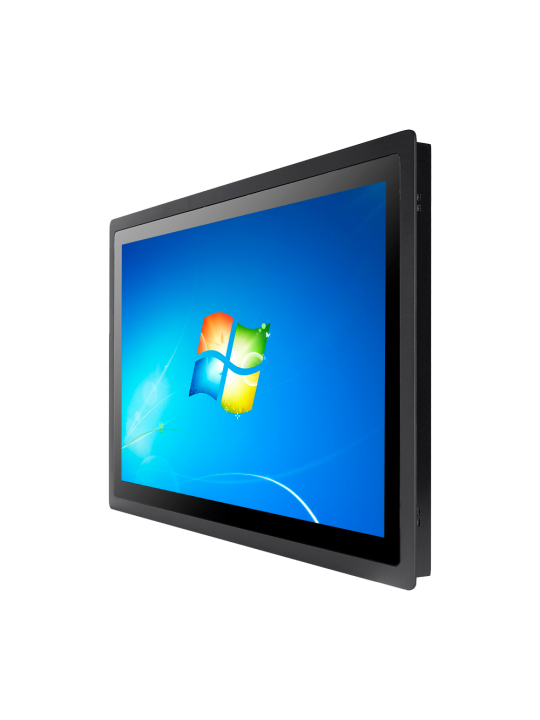

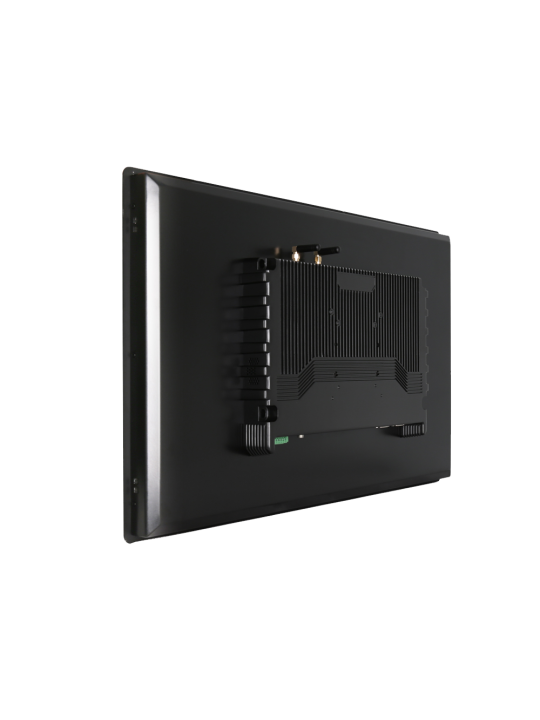

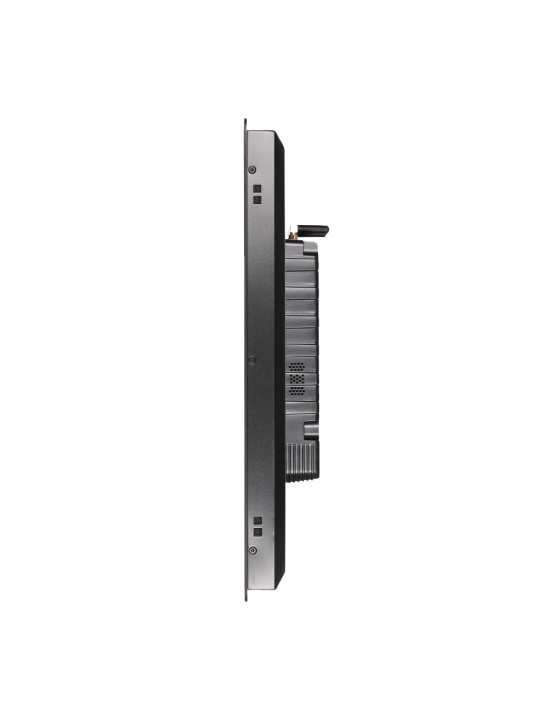

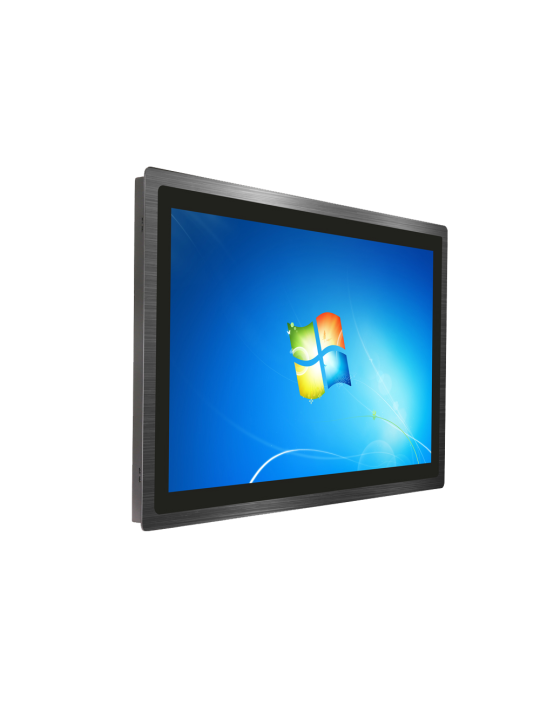

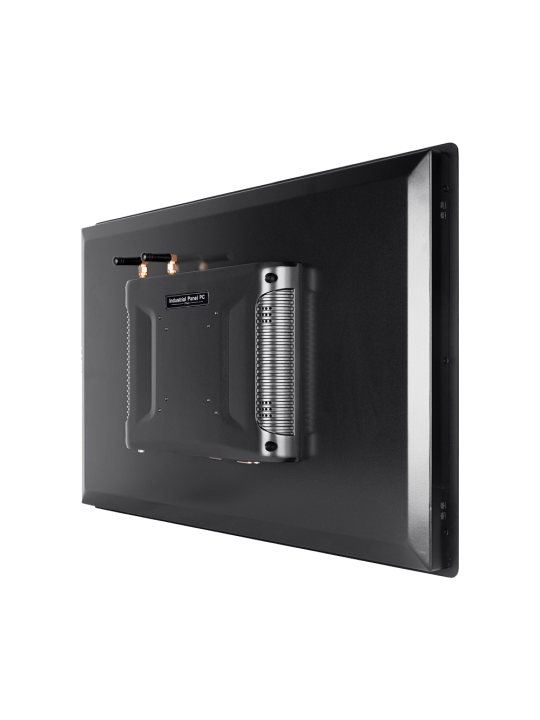

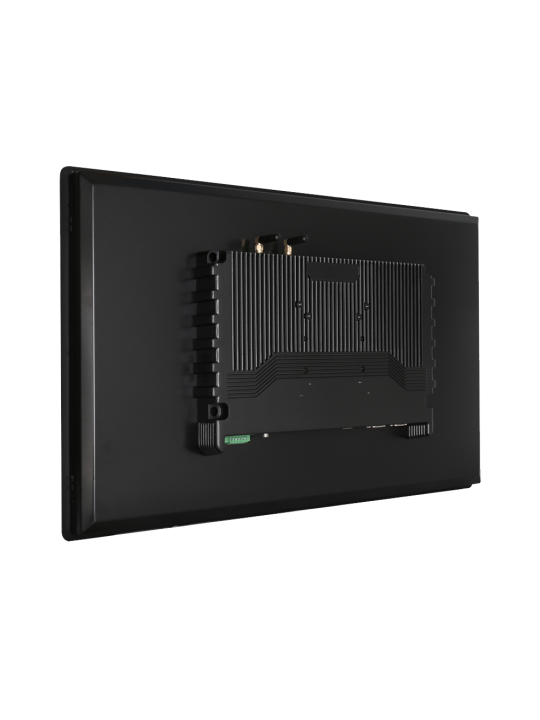

Industrial Panel PC 21,5", 16:9, IP65, 12 ~ 36 V
ITP-A215
- 3mm Super Thin Front Bezel, Best for Embedded Cabinet.
- Pure flat panel IP65 dust-proof and waterproof.
- Self-developed fanless X86 architecture industrial motherboard
- Dual gigabit adaptive Ethernet ports for faster transmission.
- Supporting 12V-36V wide voltage power supply;
- Industrial protection, applicable to various harsh environments.
- Avaiable CPUs: Intel Celeron (J1900 o J4125), I3, I5, I7.
Industrial aluminium alloy Panel PC with a clean and elegant design and an ultra-thin 3 mm frame. Its sturdy design and IP65 degree of protection make it suitable for industrial applications and all applications where H24 operation is required.
Variant Intel Core:
Celeron variant:
ITP-A215
Specific References

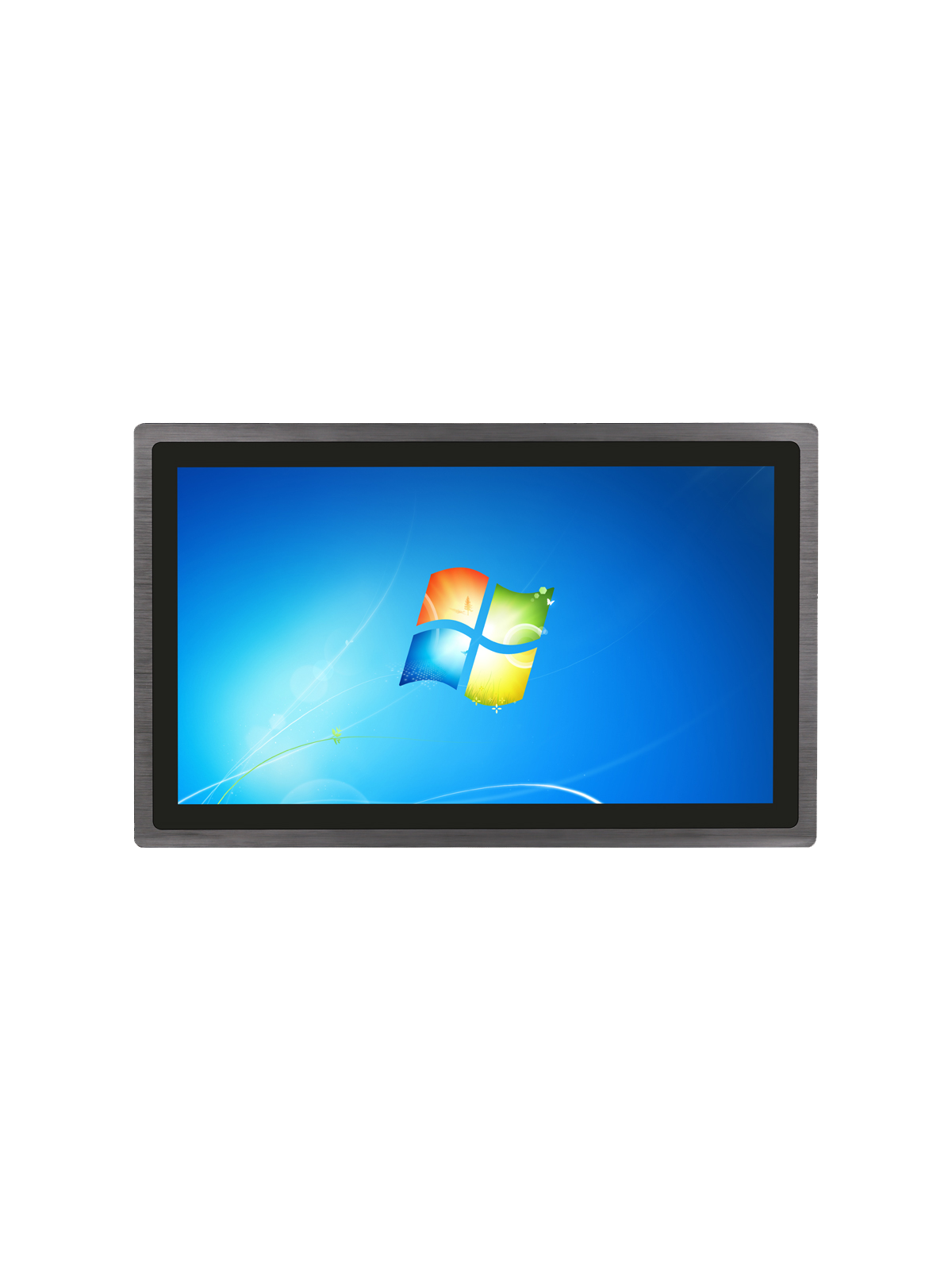

Display
| LCD Size | 21.5" (54.61 cm) TFT LCD |
| Active Area (mm) | 476.64 (H) x 268.11 (V) |
| Resolution | 1920 x 1080 |
| Viewing Angle | 89/89/89/89 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 (cd/m2) |
| Contrast ratio | 1000:1 |
Touch Parameters
| Touch type |
10-point touch projection Capacitive
|
Single-point Resistance
|
Non-touch |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input mode |
Handwriting or Capacitance pen
|
Fingertip or stylus | / |
| Controller | USB | USB | / |

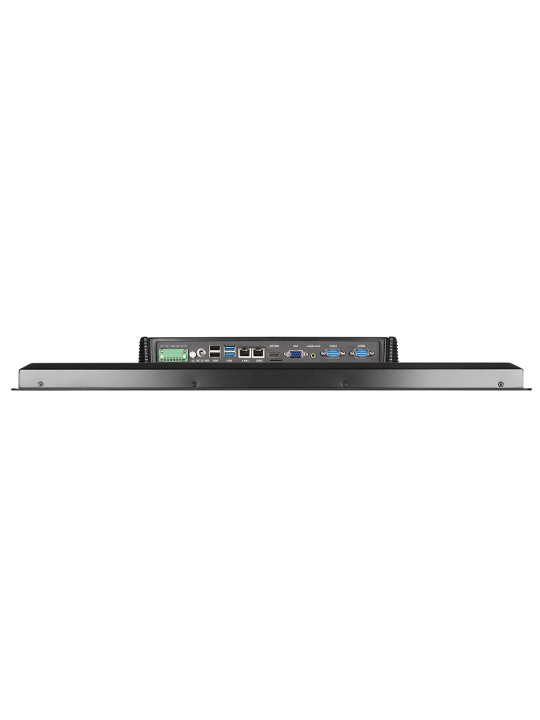

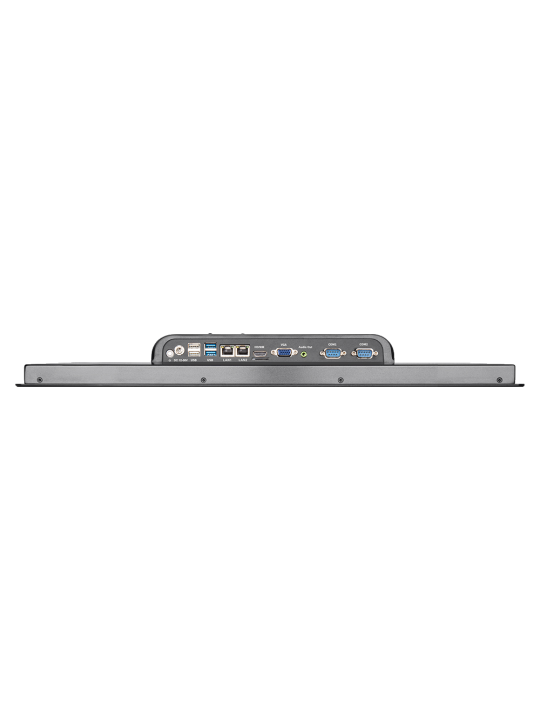

Interface
| USB | 2x USB 2.0, 2x USB 3.0 |
| Video | 1x HDMI (Data output, up to 4k) |
| Touchscreen (Optional) |
Single-point resistive or capacitive multi-touch
|
| Lan |
2x Lan, Dual 1000M adaptive Ethernet
|
| Audio |
1x Audio out, 3.5
|
| Sim |
1x Sim, various formats (depending on 3G/4G module)
|
| VGA |
1x VGA
|
| COM |
2x RS232
|

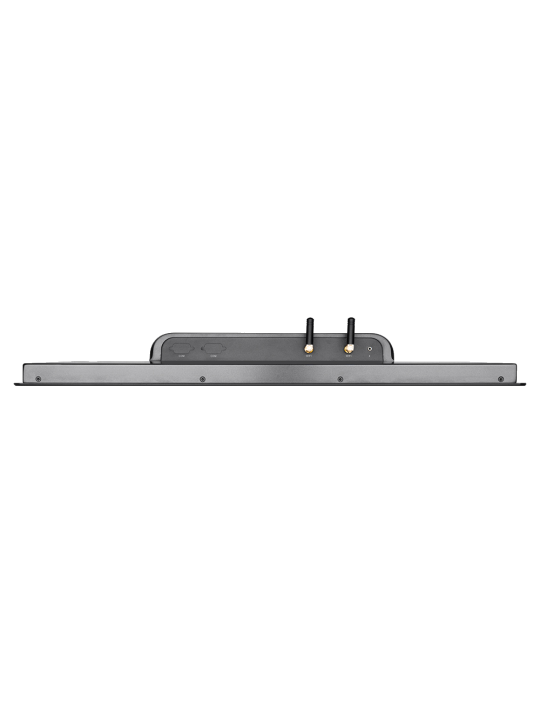

| WiFi antenna |
2x WiFi antenna
|
| Power interface (1) |
1x DC 2.5, Supporting 12V-36V power input
|
| Power interface (2) |
1x Industrial terminal, Supporting 12V-36V power input
|
Hardware Configuration
| CPU (Customizable) | Intel Celeron (J1900 or J4125), I3, I5, I7 |
| Ram | up to 64Gb DDR4 |
| Storage | up to 512Gb SSD, up to 2Tb HDD (optional) |
| WiFi | Dual Band 2.4G & 5G |
| Bluetooth | BT 4.0 (optional) |
| Operating System | Win 10/11, Ubuntu/Centos/RedHat/Debian/Linux |
| Other Support | Support RTC real-time clock and timing switch |
Mechanical / Environmental
| Authentication |
CCC/CE/FCC/EMC/CB/ROHS
|
| Operating temperature | -10° ~ 60°C |
| Humidity | Humidity: 95% Non-Condensing |
| Dimensions (WxHxD) | 557 x 345 x 65 (63) mm |
| IP Rating | Front panel reaches IP65 protection level |

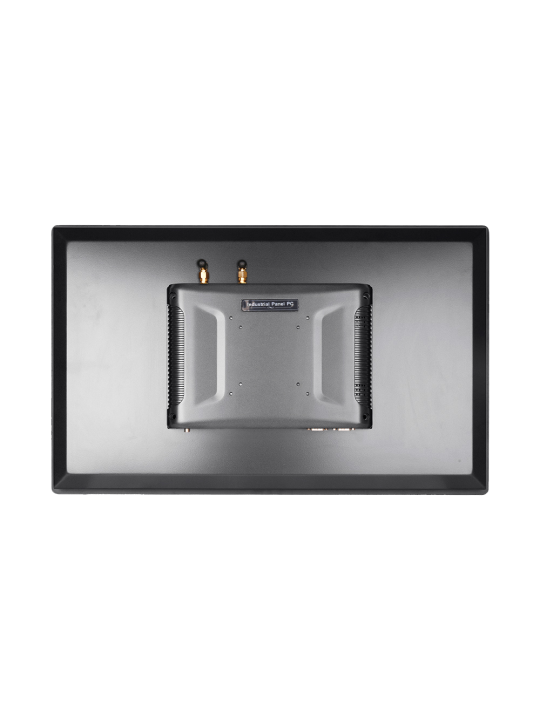

| Mounting | 100 x100, 200x100 VESA Mount |
| Vibration protection | IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms |
.png)
.png)
.png)
Request information or customize this product
Describe your needs regarding this product and our technicians will contact you.
