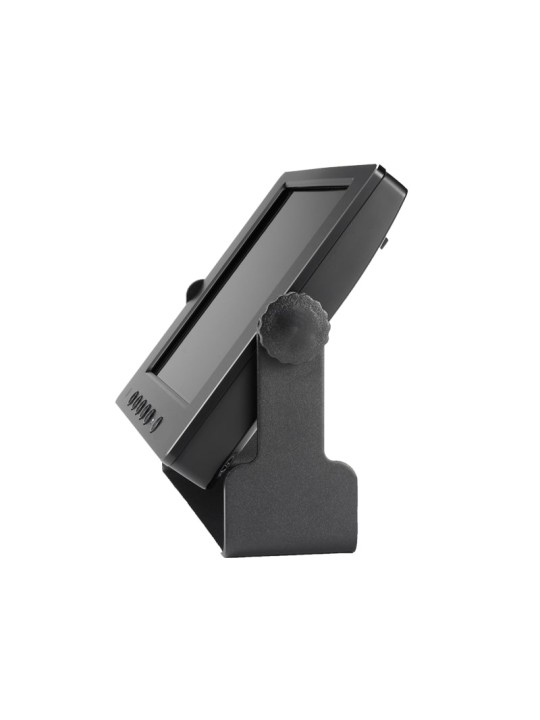

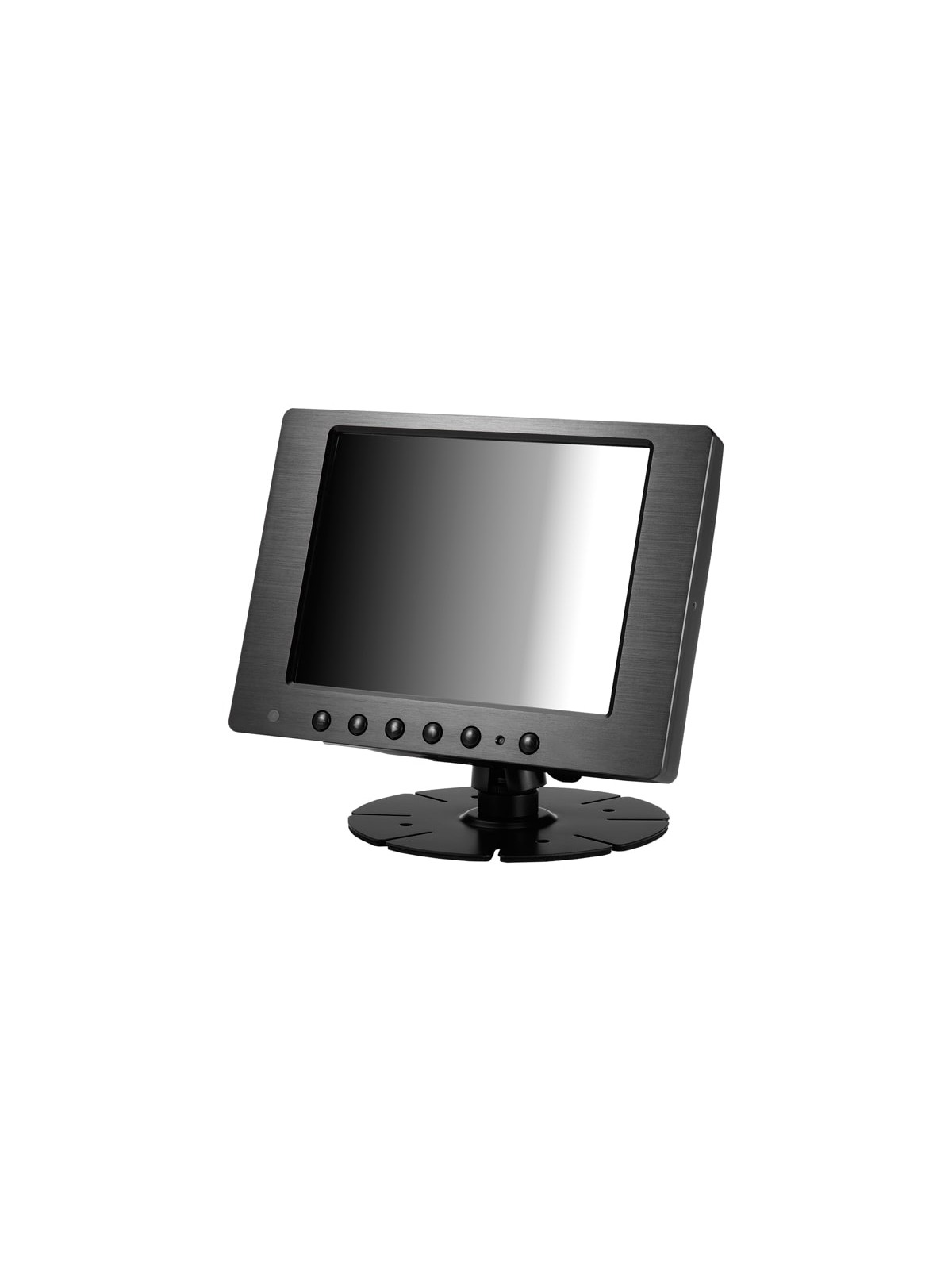

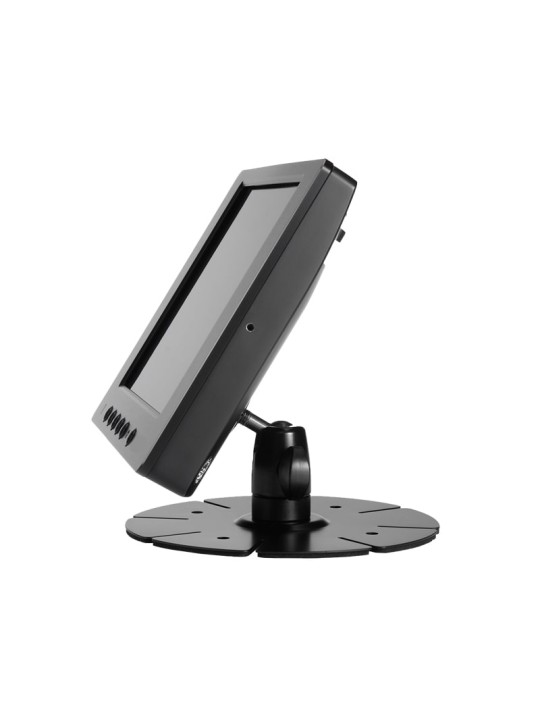

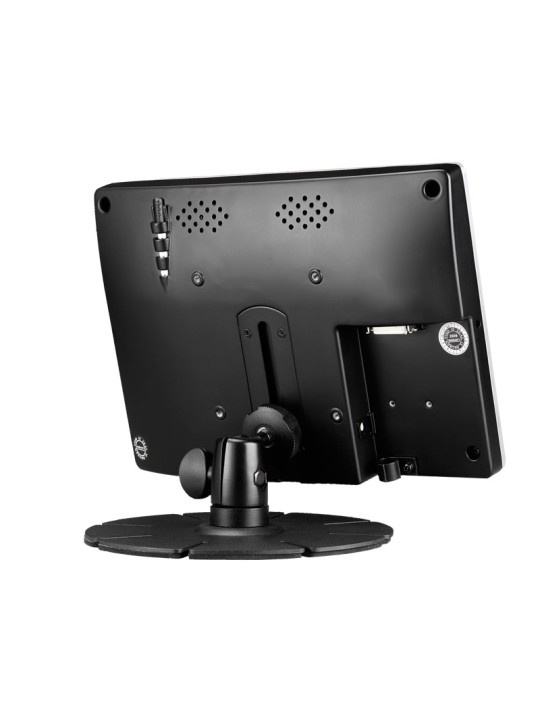

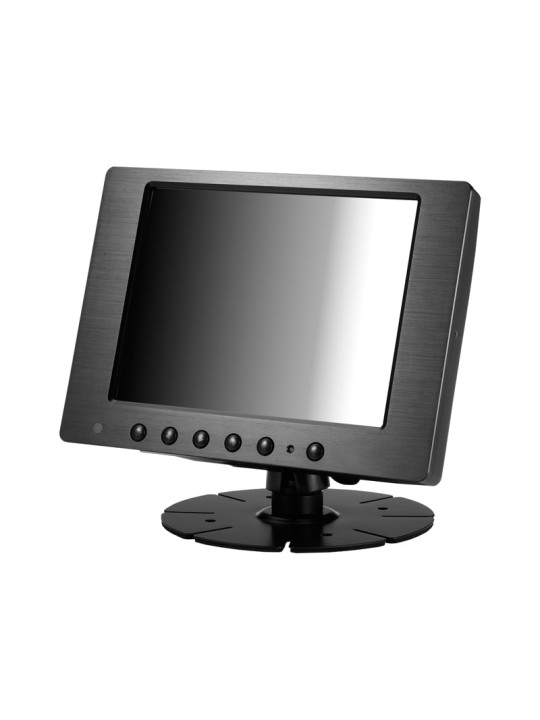

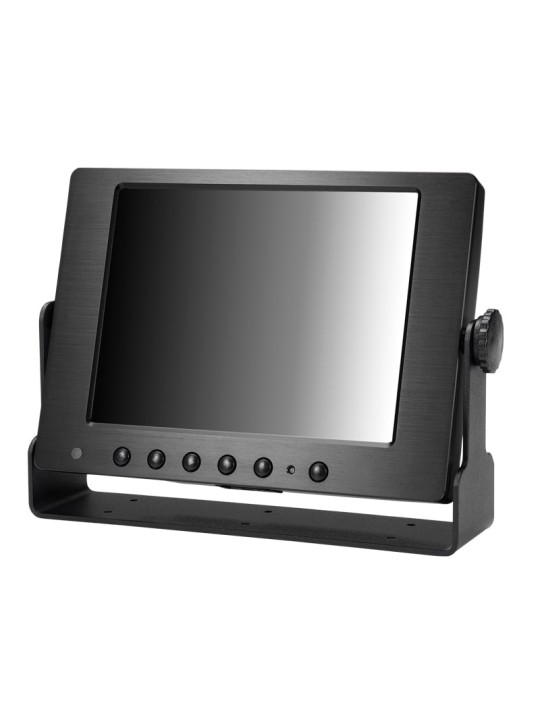

In-vehicle Monitor 8", 4:3, Optional Touchscreen

ITV-D080
  • 8" In-vehicle Monitor, native resolution 800x600 (4:3)
  • Up to 1000 NIT for optimal visibility even in brightly lit environments
  • Optional Resistive or Capacitive touchscreen
  • Multi-Monitor Touchscreen Support
  • Anti-Glare Coating
  • Input Video: HDMI, DVI, VGA and Video x2
  • Audio Input x2
  • AV2 Auto Switching for Backup Camera
  • ROHS, REACH, ECE R118-03 Compliant
  • 3 years Warranty

A vehicular monitor designed for use in unstable environments (with strong vibrations), it is built with ceramic capacitors that provide excellent resistance to extreme temperatures and improved stability.
Capacitive sensing offers a more responsive tactile interface than resistive sensing. This is achieved by using the ability of the human skin to detect proximity or position of the input. Proximity sensing allows the touch interface to function even if the display is covered by glass or a protective coating.

The monitor can be equipped with a capacitive or resistive touchscreen and has a 800 x 600 pixel resolution for a clear and sharp display of information.
Extensive connectivity is offered, including VGA, HDMI, DVI and Video.

ITV-D080

Specific References

Display
LCD Size 8" (20.32 cm)
Supported PC Resolution 640 x 480 ~ 1600 x 1200
Resolution 800x600
Brightness 1000 (cd/m2)
Contrast ratio 500:1


Interface
Video HDMI, DVI, VGA, Video x2
Touchscreen (Optional)
Single-point resistive or capacitive multi-touch
Audio
1x Audio out
Power interface
1x DC, 12V power input


Mechanical / Environmental

Authentication
FCC, CE, E13, ROHS, REACH, ECE R118-03
Operating temperature -20° ~  70°C
Dimensions (WxHxD) 228W x 164H x 36D
MTBF > 55,000 Hours or > 6.2 Years of continuous operation
